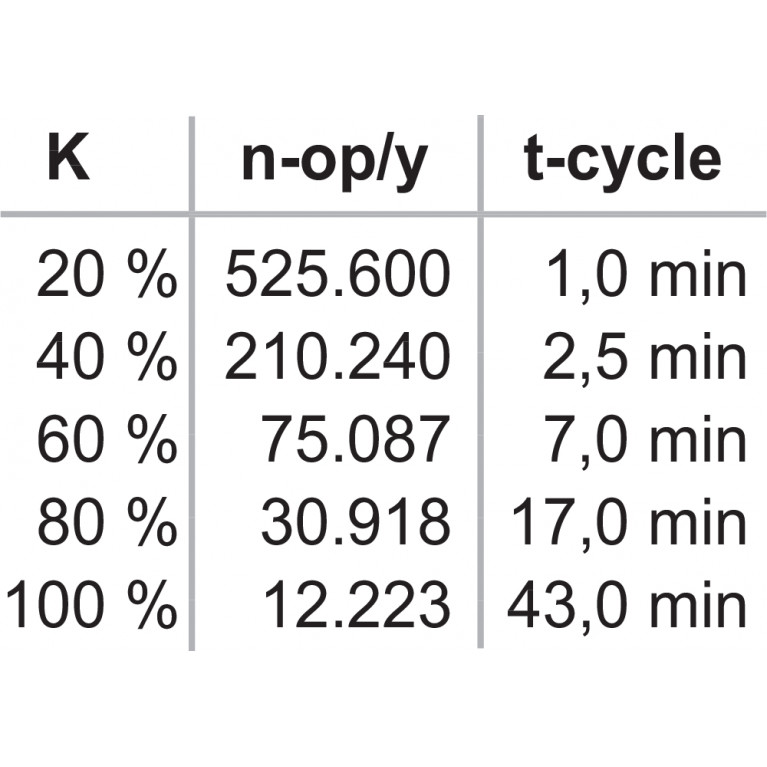

2,00 х 10⁻⁷/ч
Safety Integrity Level (SIL), Stop 0, suitable for applications in
2,00 х 10⁻⁸/ч
PFH value, Stop 1
20 лет)
Common Cause Failure (CCF), minimum
3
Safety Integrity Level (SIL), Stop 1, suitable for applications in
Другие данные
Примечание (приложения)
Safety sensorGuard systemEmergency-Stop buttonPull-wire emergency stop switchesSafety light curtain

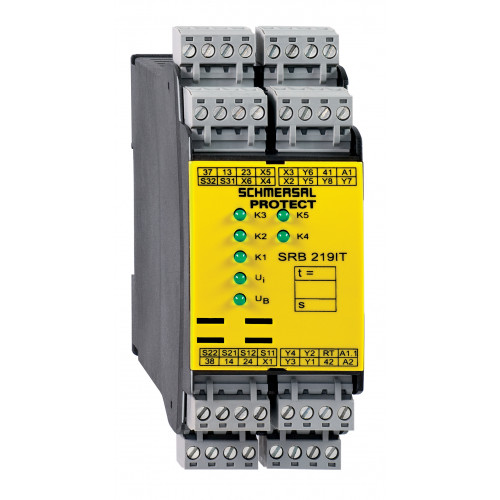

Индикация состояния
Указанные рабочие состояния
Position relay K2Position relay K1Internal operating voltage UiPosition relay K3Position relay K5
Механические данные
Механическая долговечность, минимум
10,000,000 Operations
Монтаж
Snaps onto standard DIN rail to EN 60715
Механические данные – Размеры
Механические данные – техника подключения
Момент затяжки зажимов
0.6 Nm
Обозначения клемм
IEC/EN 60947-1
Прекращение действия
rigid or flexibleScrew terminals M20 x 1.5
Сечение кабеля, максимальное
2.5 mm²
Сечение кабеля, минимальное
0.25 mm²

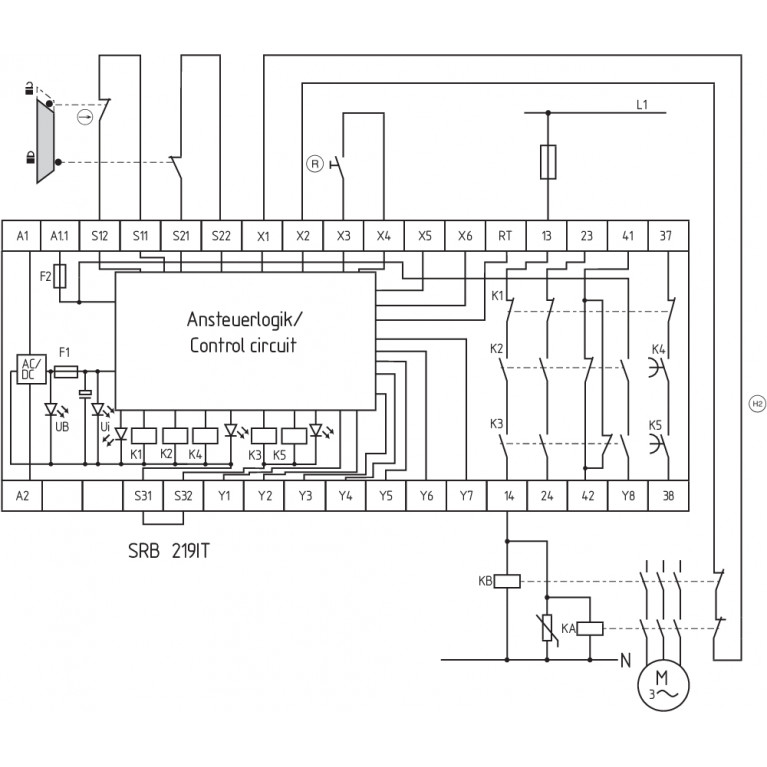

Пример подключения
Примечание (Схема подключения)
The wiring diagram is shown with guard doors closed and in de-energised condition.The ISD tables (Intergral System Diagnostics) for analysis of the fault indications and their causes are shown in the appendix.The control system recognises wire-breakage and earth faults in the monitoring circuit.Relay outputs: Suitable for 2 channel control, for increase in capacity or number of contacts by means of contactors or relays with positive-guided contacts.Connect potential p-type outputs of safety light grids/curtains to S12/S22. The devices must have the same reference potential.Time delay: The time-delayed safety enable 37/38 is adjustable for 1 to 30 seconds drop-out delay (see setting intructions).Setting of the drop-out delay time is carried out by means of a potentiometer from the front of the enclosure.For 2-channel control with cross-wire monitoring, connect the NC contact to S11/S12 and S31/S32 and bridge S21/S22"Start function / Reset button: The function "trailing edge" is programmed by means of the "AF" switch located underneath the housing cover (switch position = 1). The automatic start is programmed by bridging terminals X3/X5 and by switching the "AF" switch to 0. The time offset between the channels is approx. 100 ms. An endless time offset between the channels 1 and 2 is programmed by bridging the terminals X3/X6."Input level: The example shows a 2-channel control of a guard door monitoring with two position switches, whereof one with positive break, external reset button (R) and feedback circuit (H2). (example without cross-wire monitoring)For 1-channel control, connect NC contact to S11/S12 and bridge S21/S22 + S31/S32Early switch-off of time delay: The drop-out delay time can be ended early via the input RT. The input RT makes it possible to "switch off" the time-delayed enabling circuit 37/38 before the set time has elapsed."F1 = Hybrid fuseF2 = Fuse for signalling outputs
Примечание
Примечание (Общее)
Inductive loads (e.g. contactors, relays, etc.) are to be suppressed by means of a suitable circuit.
Условия окружающей среды
Сопротивление шоку
30 g / 11 ms
Степень защиты зажимов или клемм
IP20
Степень защиты корпуса
IP40
Степень защиты монтажного пространства
IP54
Температура окружающей среды
-25 ... +45 °C
Температура хранения и транспортировки, минимальная
-40 °C
Температура хранения и транспортировки, не более
+85 °C
Устойчивость к вибрациям
10...55 Hz, Amplitude 0.35 mm, ± 15 %
Условия окружающей среды – значения изоляции
Категория перенапряжения
III
Номинальное импульсное выдерживаемое напряжение Uimp
4 kV
Электрические данные
Диапазон частот
50 Hz60 Hz
Задержка включения при RESET, обычно
200 ms
Задержка включения при автоматическом запуске, максимум, обычно
60 ms
Задержка возврата при «аварийной остановке», не более
15 ms
Контактное сопротивление, максимальное
0.1 Ω
Материал контактов, электрический
AgSn0. self-cleaning, positive drive
Номинальное переменное напряжение для органов управления при мин
20.4 VDC
Номинальное переменное напряжение органов управления, 50 Гц, не
20.4 VAC
Номинальное переменное напряжение органов управления, 60 Гц, не
20.4 VAC
Номинальное рабочее напряжение
24 VDC
Номинальное управляющее напряжение постоянного тока, не более
28.8 VDC
Номинальное управляющее напряжение при переменном токе 50 Гц, не
26.4 VAC
Номинальное управляющее напряжение при переменном токе 60 Гц, не
26.4 VAC
Потребление электроэнергии
5.2 VA
Примечание (контактное сопротивление)
in new state
Пульсации напряжения
10 %
Рабочее напряжение
24 VAC -15 % / +10 %24 VDC -15 % / +20 %
Электрические данные – Электромагнитная совместимость (ЭМС)
Рейтинг ЭМС
EMC-Directive
Электрические данные — цифровые входы
Сопротивление проводимости, максимальное
40 Ω
